BLIND-CAM
A handheld scope for the invisible world.
Real-time Wi-Fi Channel State Information (CSI) visualization powered by ESP32.
The "Blind" Concept
Cameras capture light; the Blind-Cam captures data. We are swimming in a sea of Wi-Fi signals that bounce off walls, furniture, and bodies.
By decoding the Channel State Information (CSI) on a portable device, we can "see" movement and environmental changes without a lens. It effectively acts as a handheld sonar for the electromagnetic spectrum.

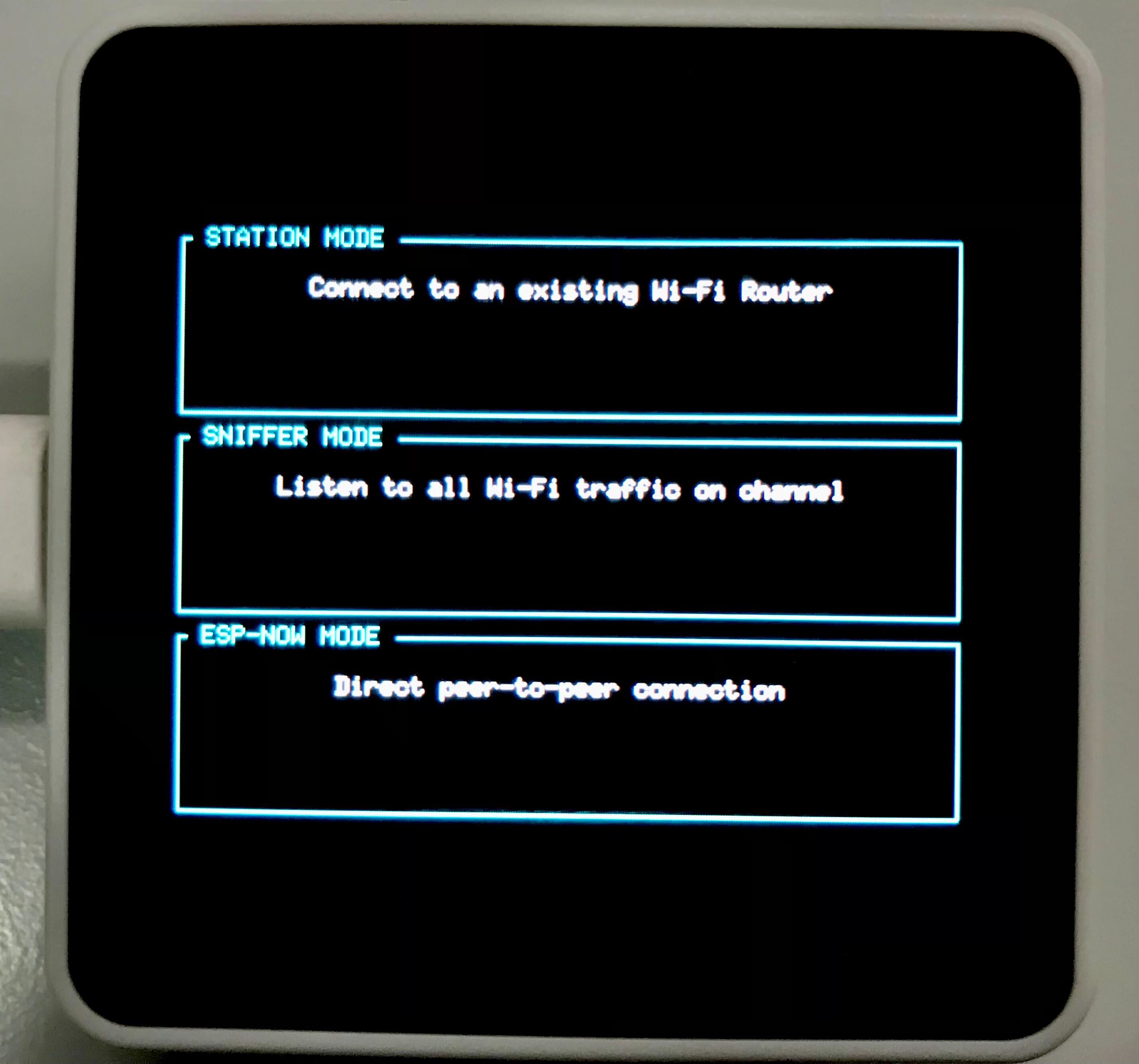

CURRENT CAPABILITIES
- ✔ Sniffer Mode: Passive traffic monitoring.
- ✔ Portable: Battery operated & self-contained.

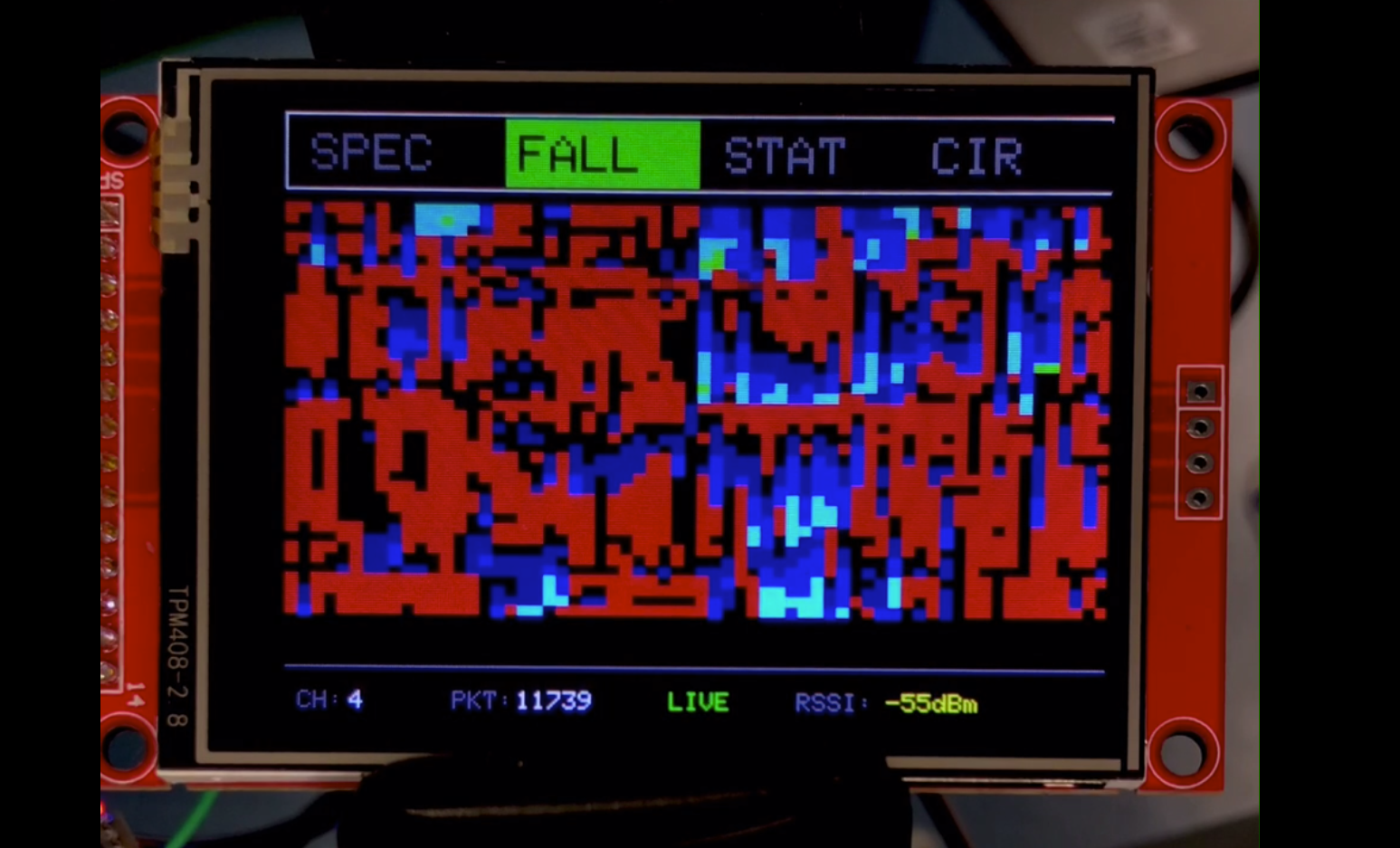

- ✔ Live Viz: 60FPS TFT rendering.
- ⏳ Station Mode: Uplink injection (In Dev).
Modular Housing Design

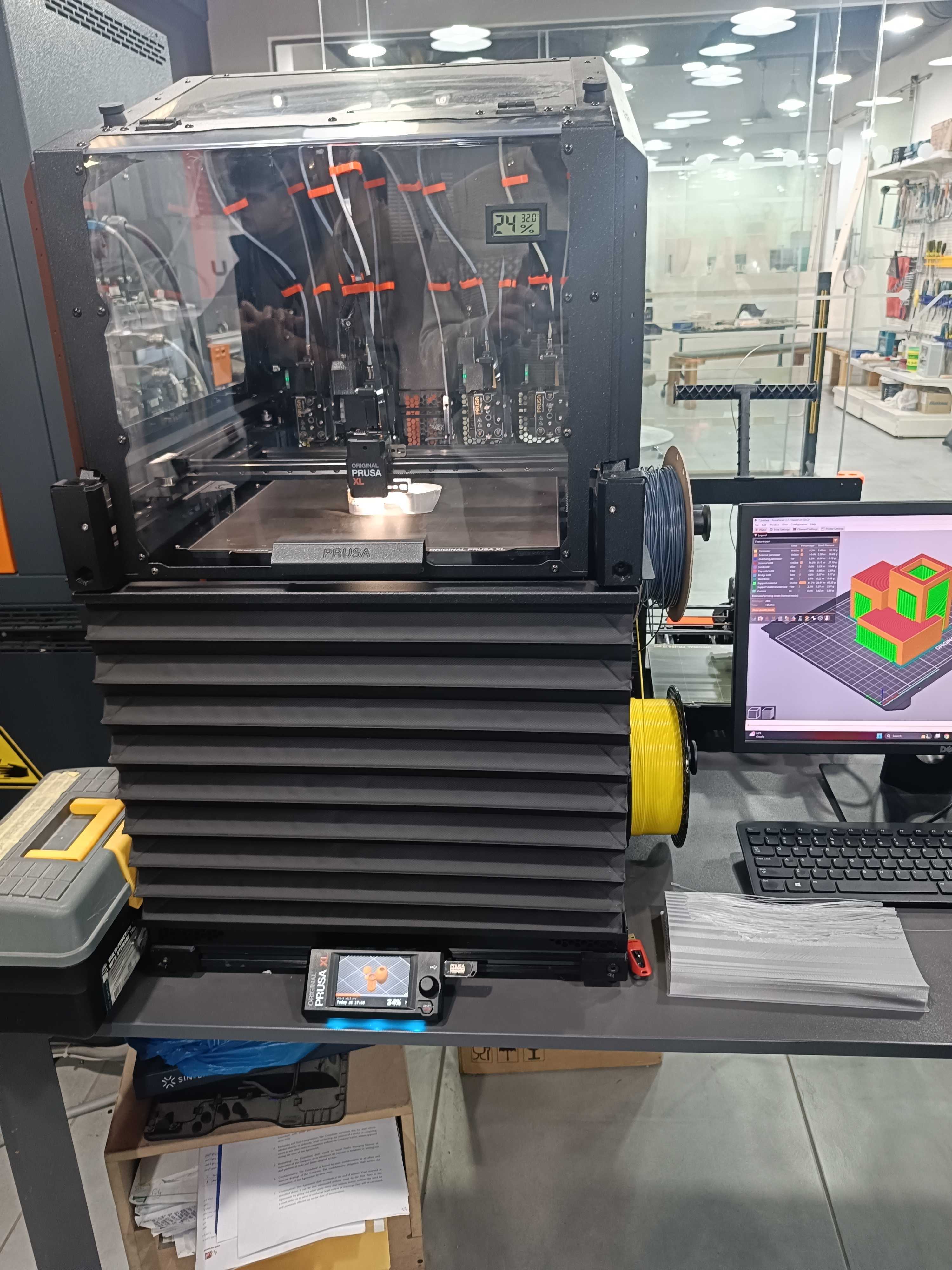

Designed in CAD and fabricated at the Makers Space, the unit is split into two distinct functional modules (body & cover) to allow for easy maintenance and friendly design.
01. The Body
Friction-fit enclosure for the ESP32 & TFT.
02. The Cover
easy on/off cover for simple assembly
Component Manifest
Low cost, high availability parts.

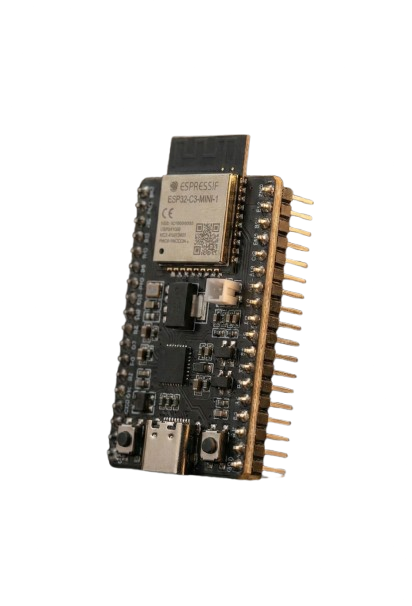

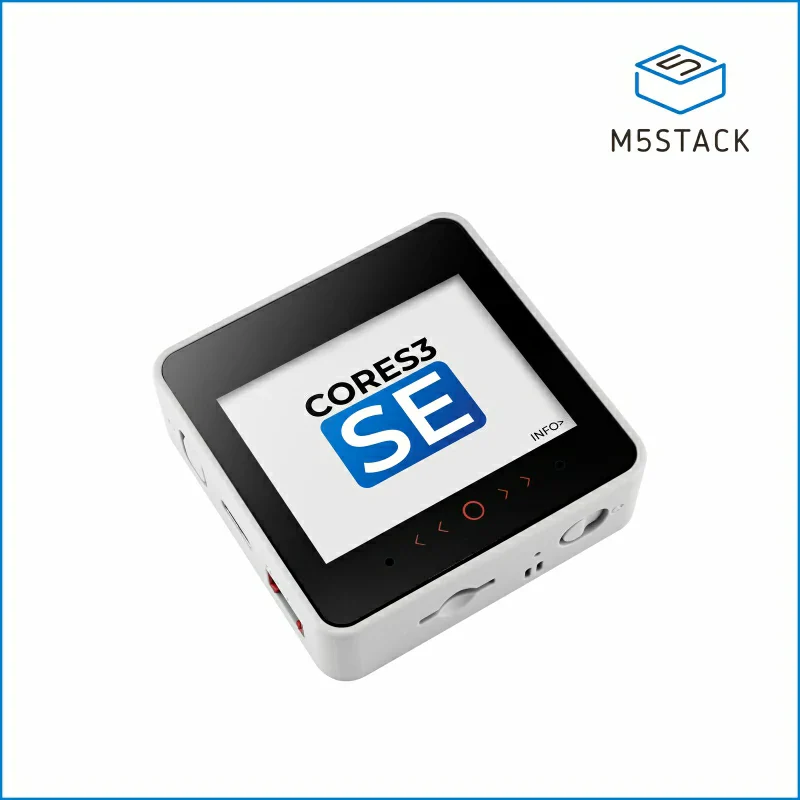

ESP32
The brain. handling high-frequency CSI packet sniffing.

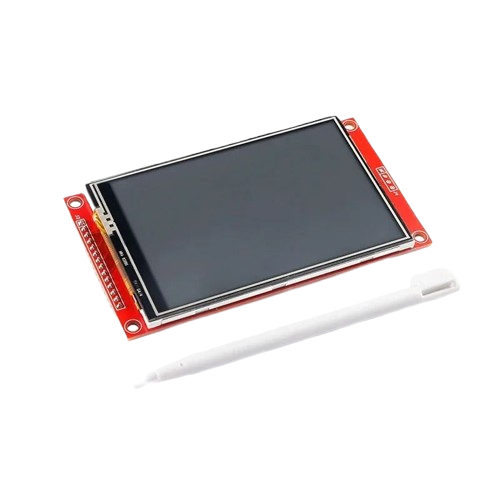

1.8" TFT Display
SPI Interface screen for real-time spectral rendering and histograms.
LiPo Power
Internal rechargeable power source for true cordless field analysis.

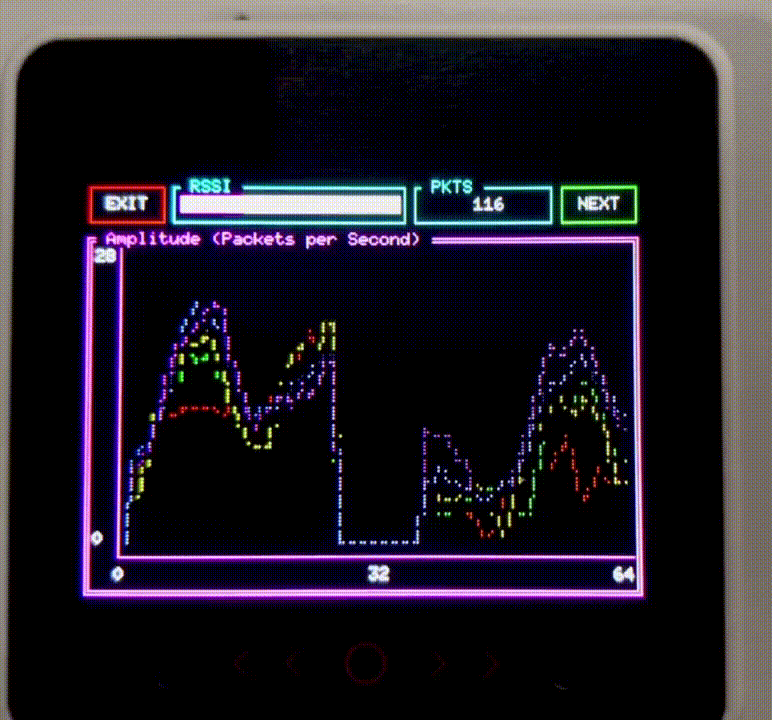

Field Test

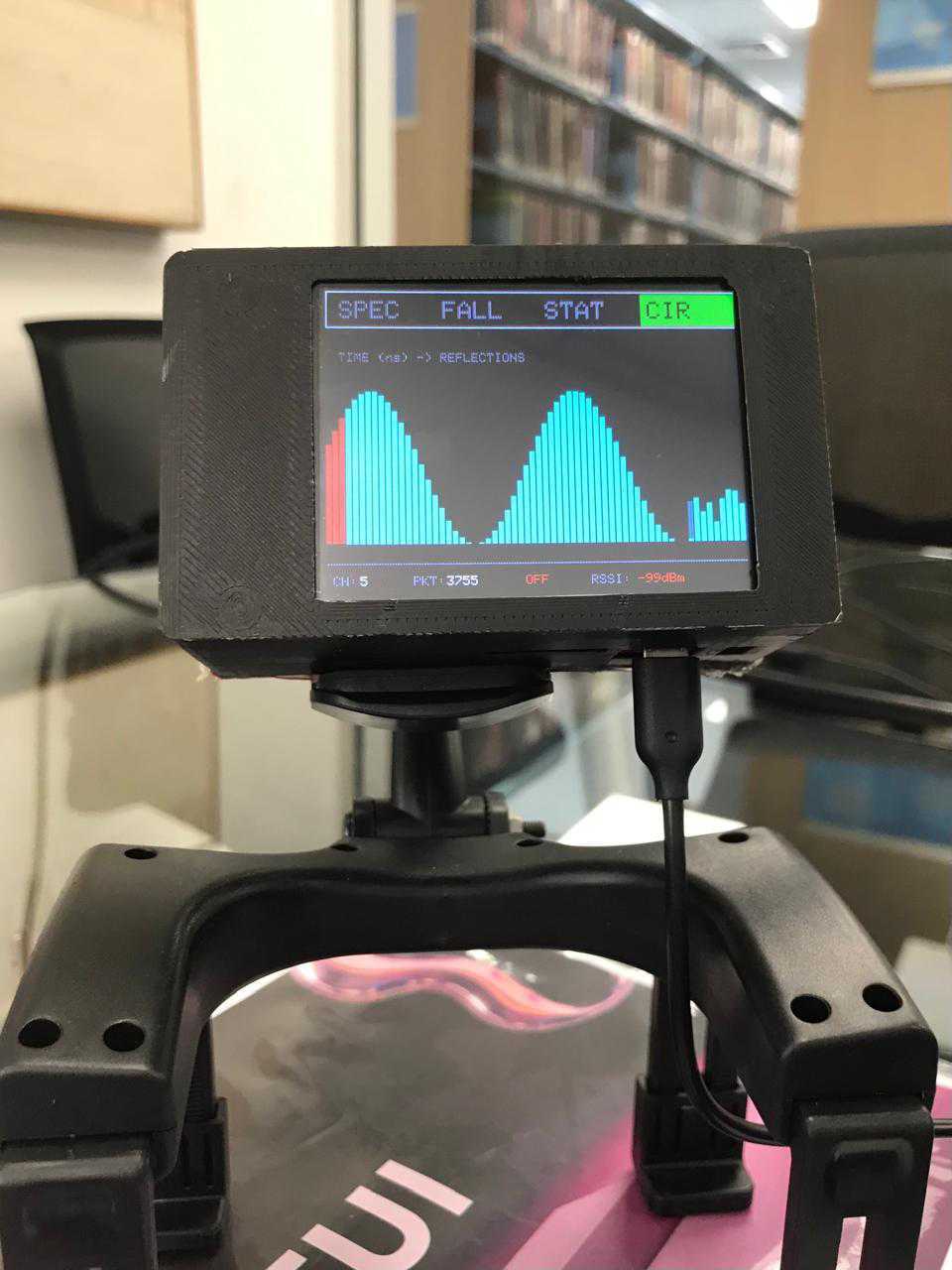

Live spectral analysis running on the 1.8" display.

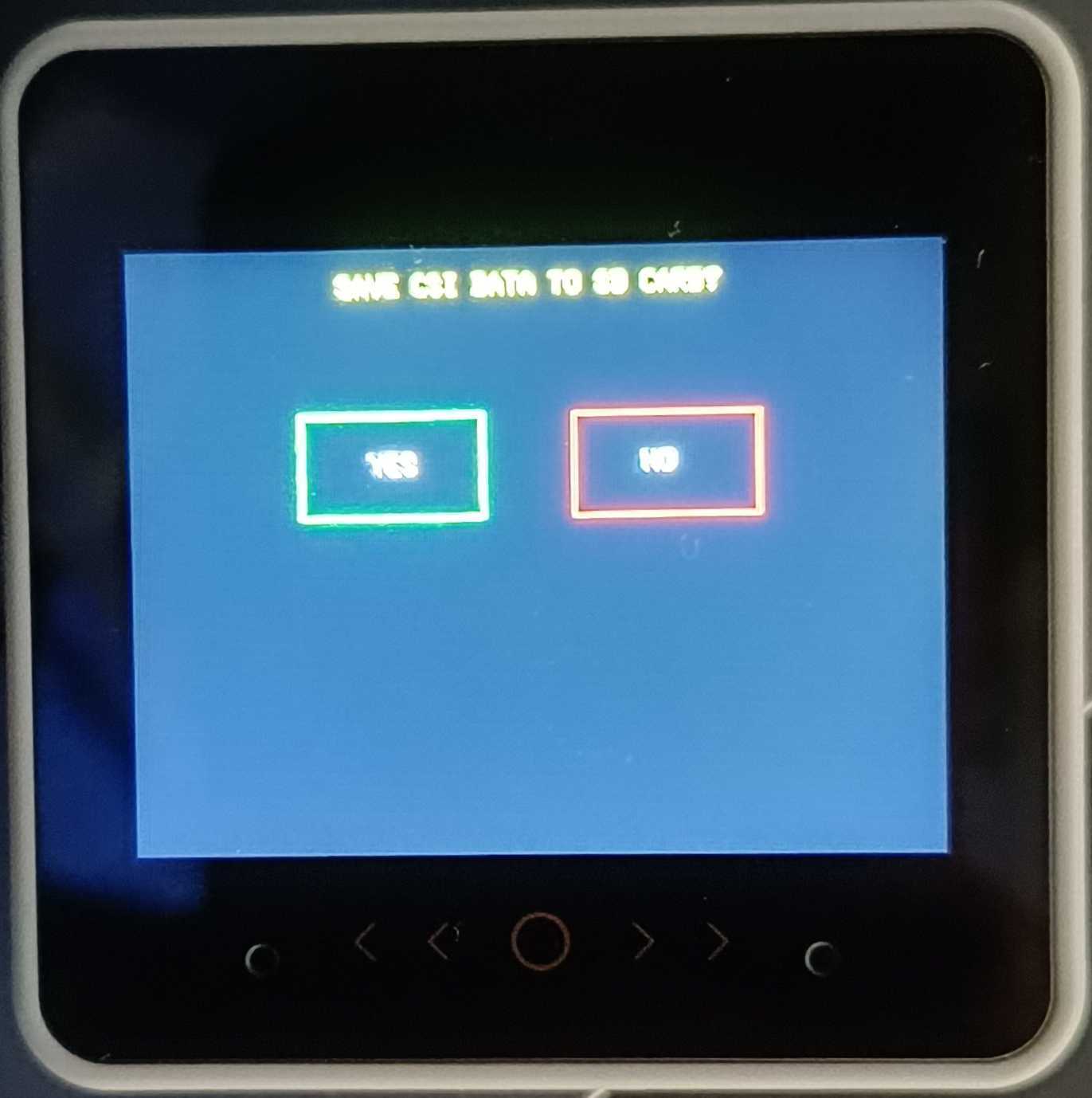

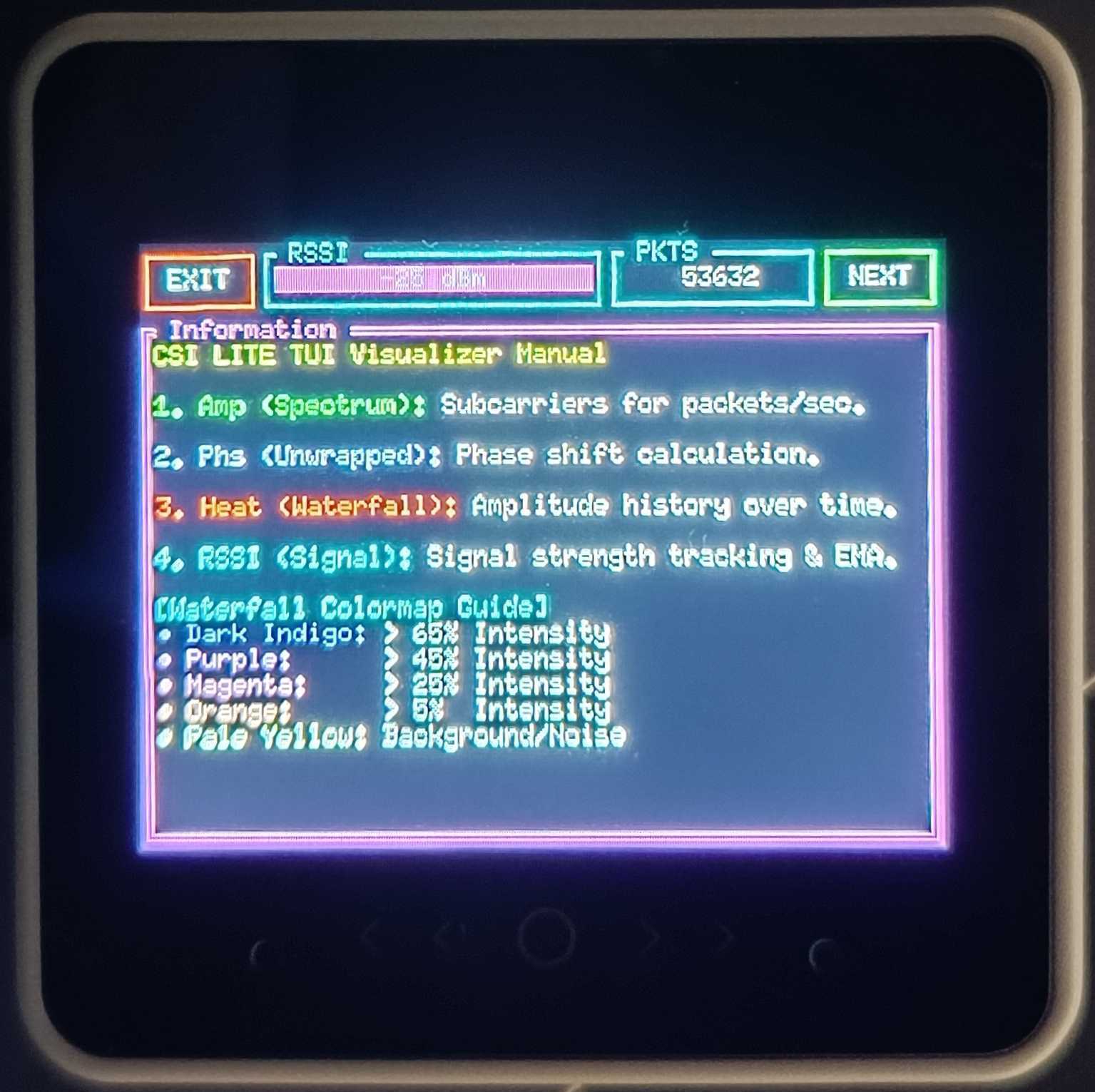

Visual Modes
The various ways we render the invisible.

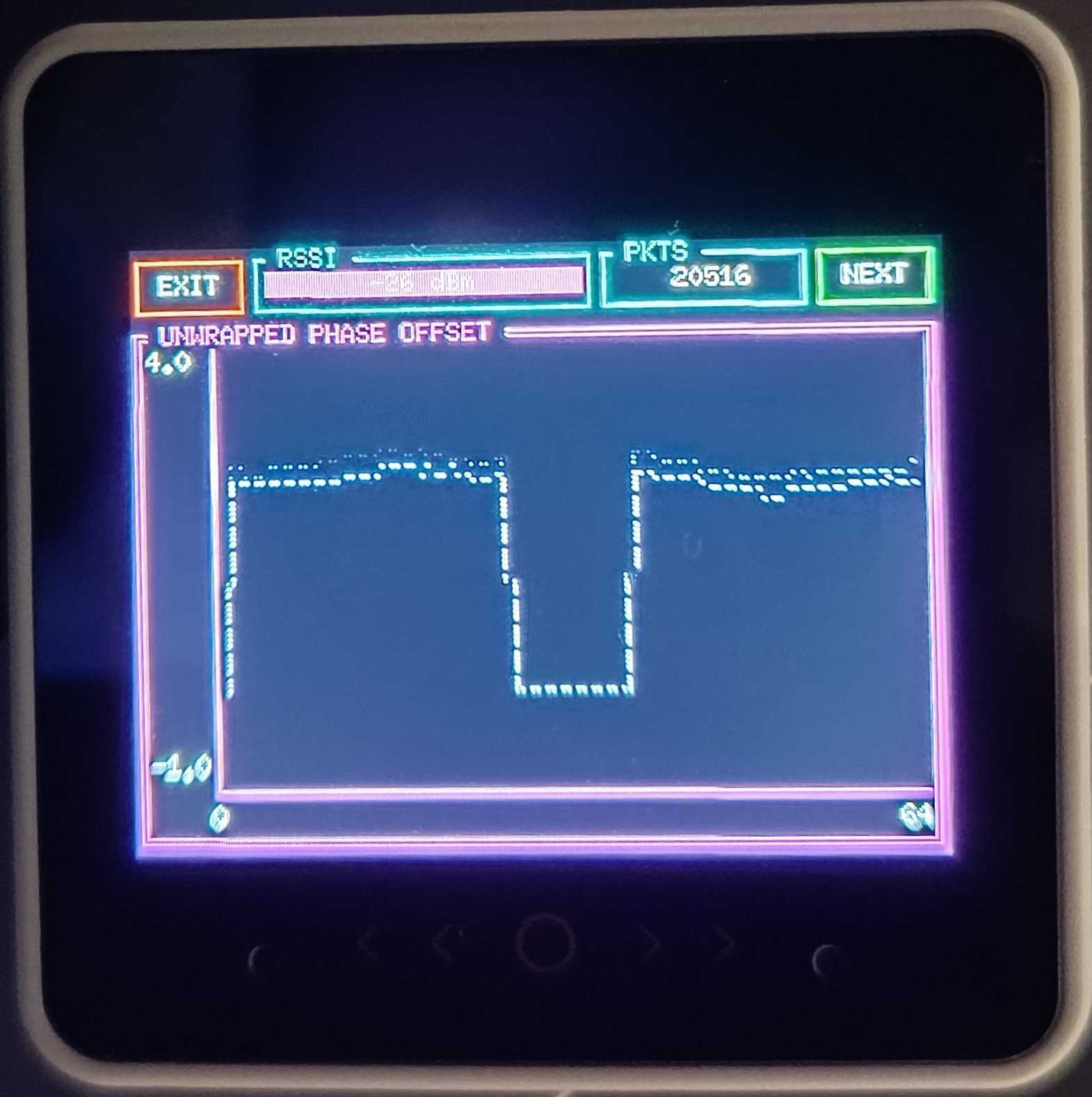

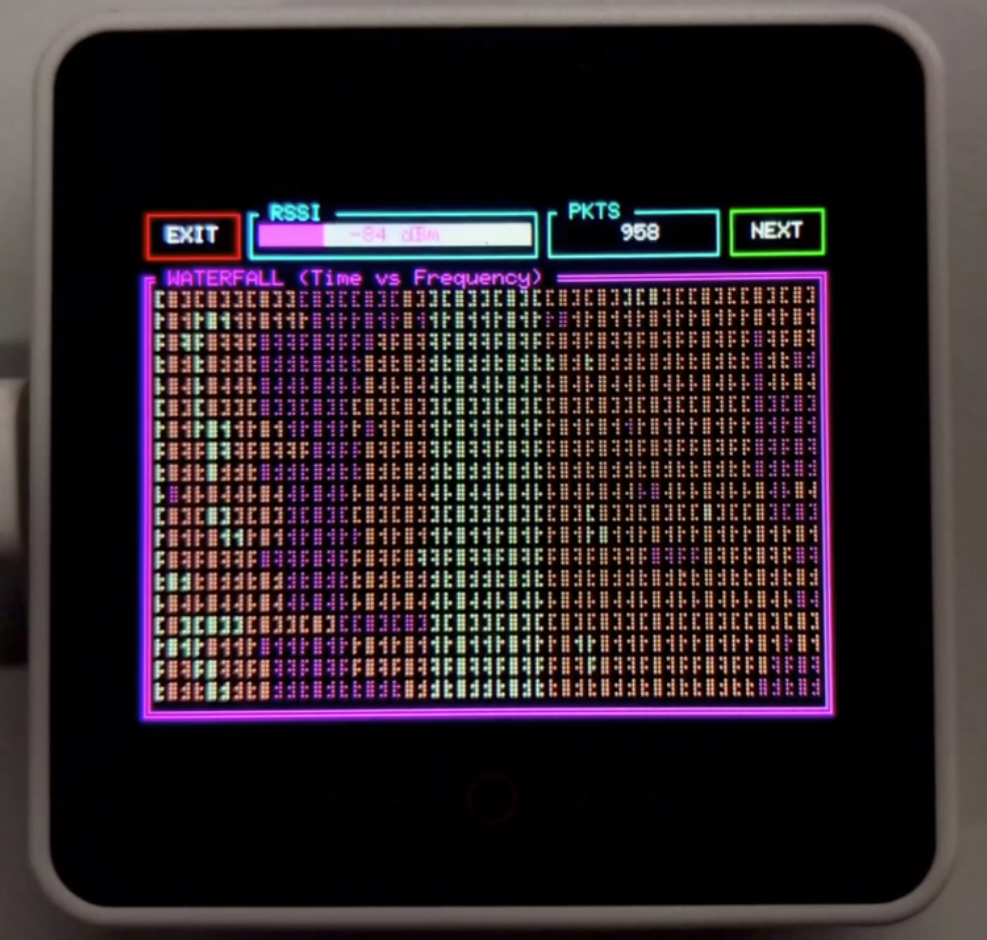

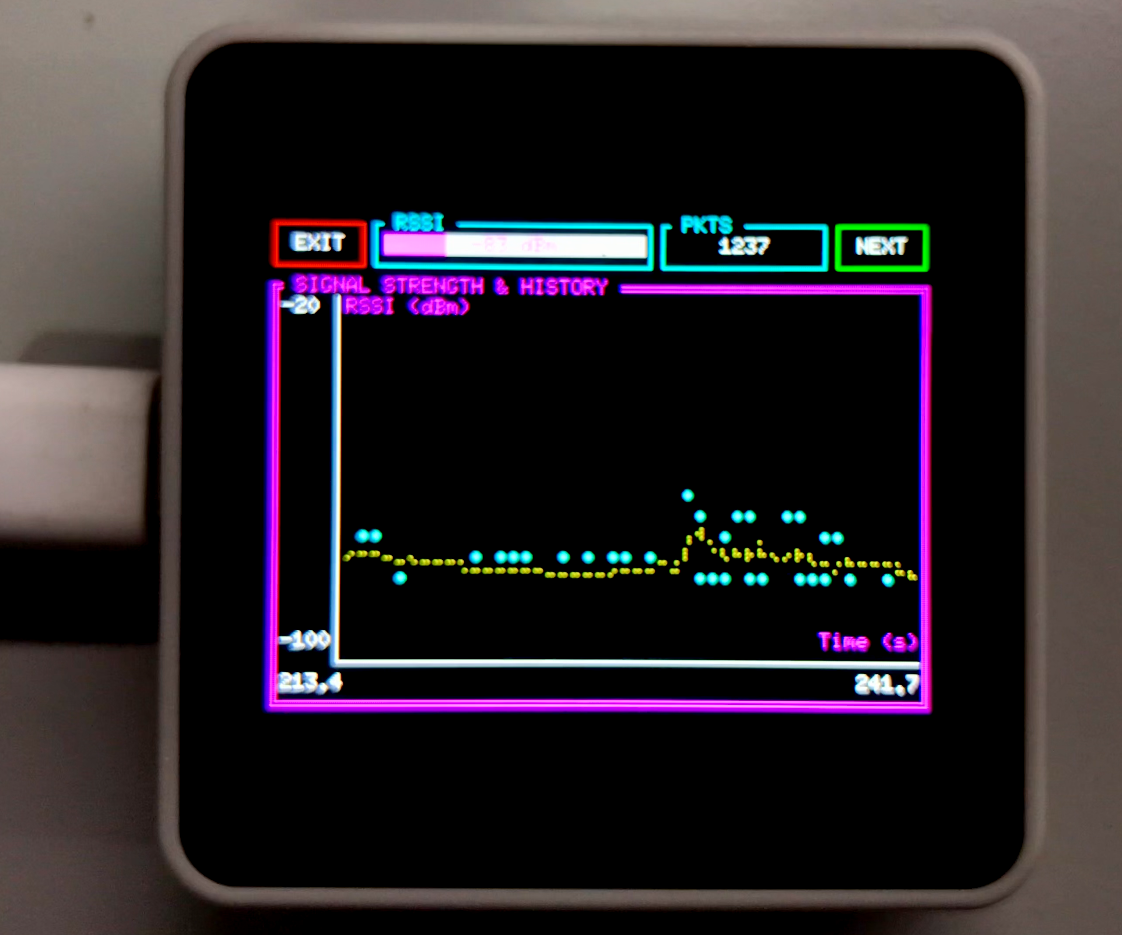

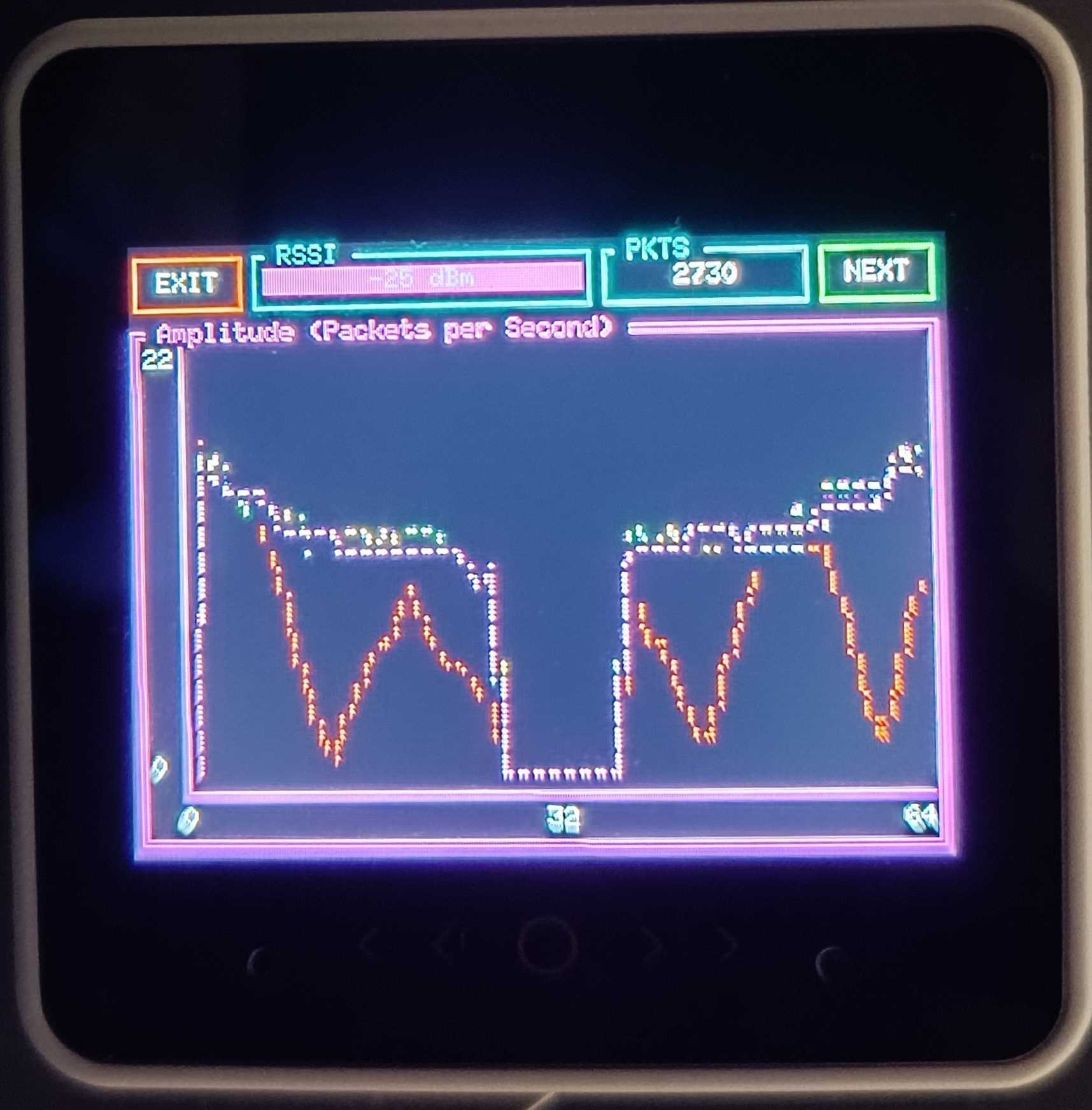

Spectral View
Real-time frequency domain representation of the Wi-Fi channel.
